Magneettinen valo

Magnetic Light

Magnetic Retrofit--2

Magnetic Retrofit--3

Magnetic Retrofit--4

Magnetic Retrofit--5

Kuvaus:

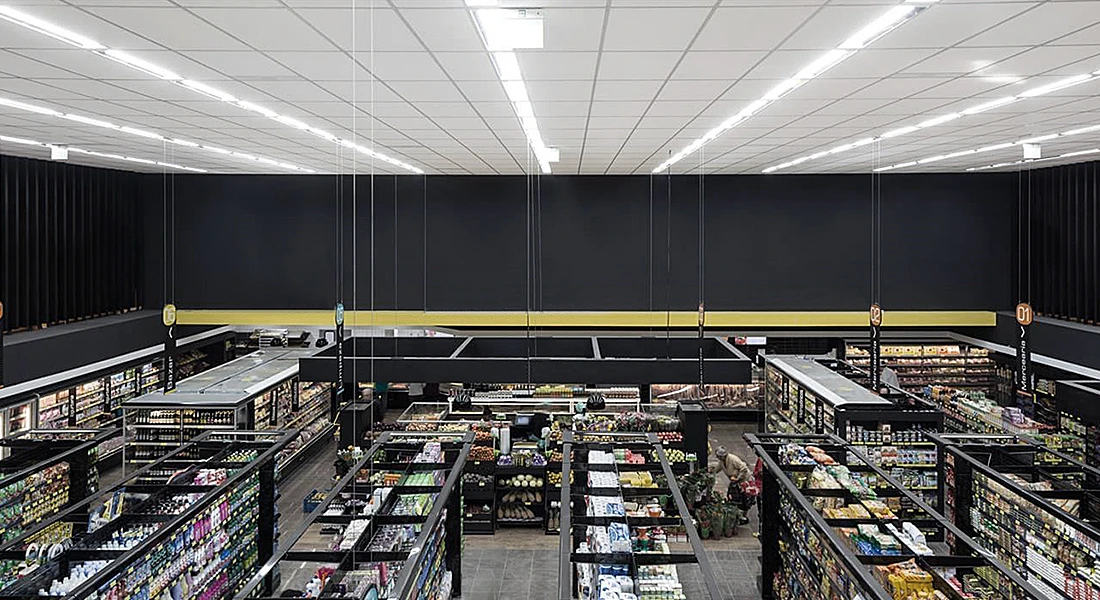

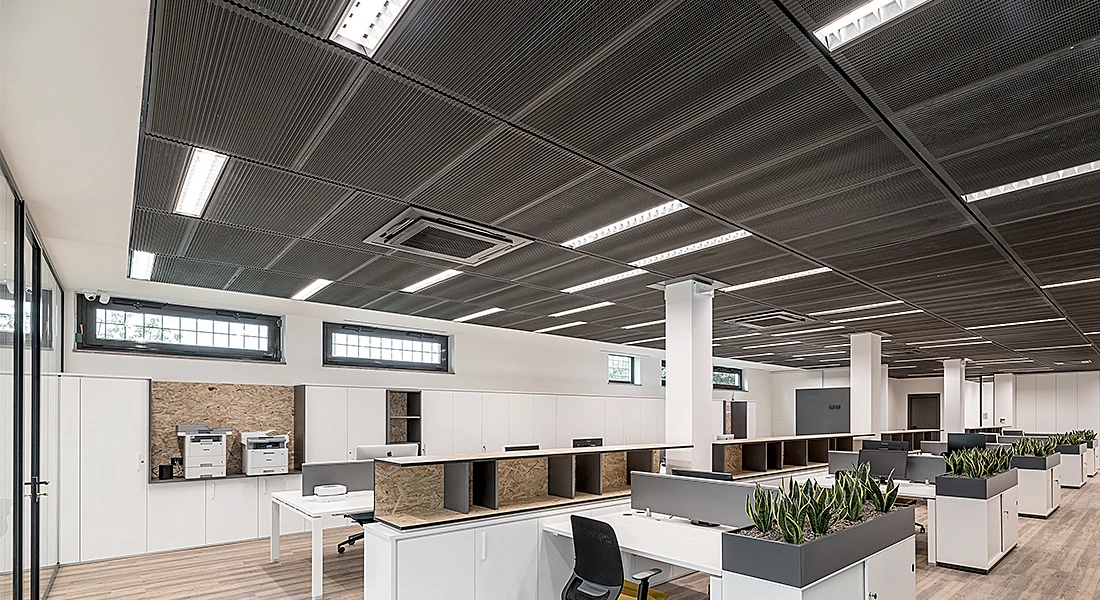

Magnetic LED Retrofit is an LED module with up to 130lm/w (Ra>90, R9>50, SDCM<3). Magnet tool-free installation, easy to maintain, saves labor costs. It is widely used to replace the traditional T5/T8 fluorescent tube light inside grille lights in offices, schools, hypermarkets, and retail stores.

Ominaisuus:

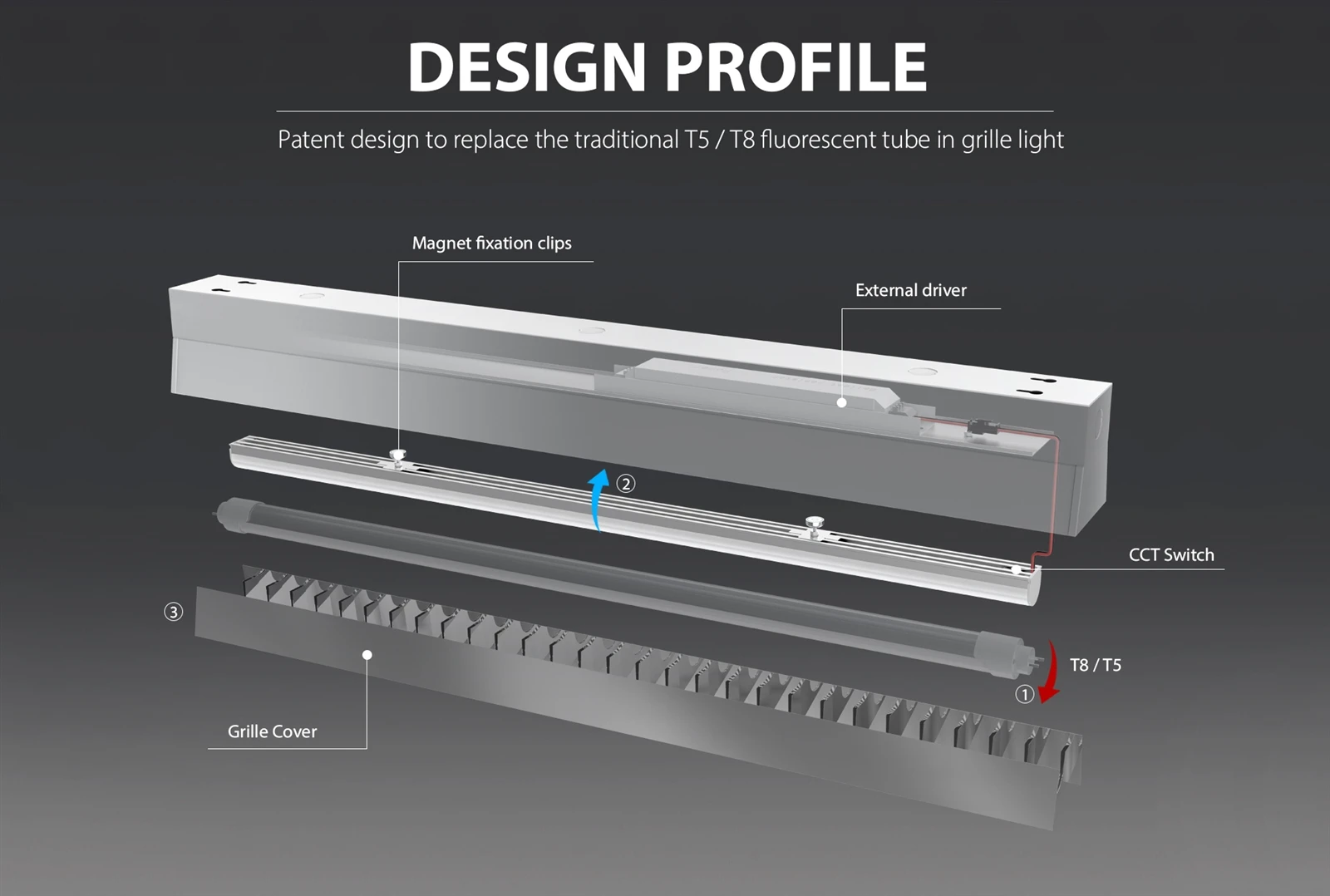

>Patenttimalli, joka korvaa perinteisen T5/T8 loisteputken

>Teho- ja värikenttä (3CCT){1}}säädettävissä

> Up to 130lm/w@4000lm (Ra>90,R9>50,SDCM<3)

>Magnet Tool{0}}ilmainen asennus, helppo huoltaa, säästää työvoimakustannuksia

>80 % enemmän energiaa kuin loistelamppuja

Send Inquiry

Download

Description

Technical Parameters

JOHDANTO:

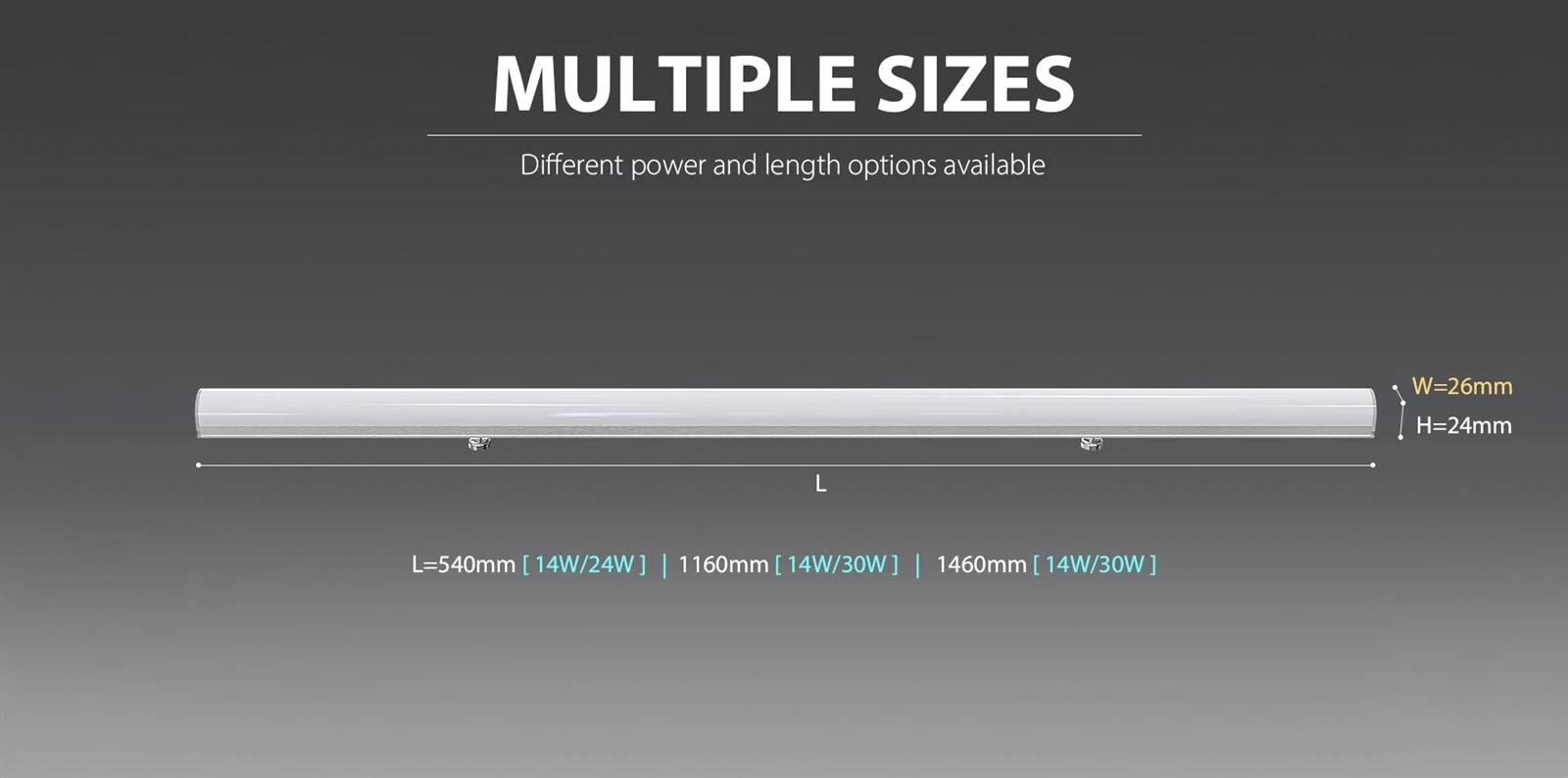

Toppo Magnetic LED Retrofit is a time-saving alternative to directly replace fluorescent lamps with LEDs. High efficacy up to 135 lm/w (Ra>90, R9>50, SDCM<3), power switch from 14-30W, 3CCT switch from 3000K/4000K/5000K, various sizes of L540mm, L1160mm, L1460mm. With magnetic, tool-free installation, in just 1 minute, your existing fluorescent tube fixtures (recessed, strip, wrap, etc.) can be converted to energy-efficient, long-lasting LED lights while preserving the look of your space.

Tilauskoodi	Nimellisteho	LM/W	Lumen	SDCM/Ra	IP-luokka	Tuotteen mitat	GW/CTN	QTY/CTN
TU100-02N-PT1-24F10-01	14W/24W	Typ.120	1680/2880	SDCM<3/Ra80,90	IP20	P540xL26xK24	9,91 kg	25 kpl
TU100-04N-AT1-30F10-01	14W/30W	Typ.130	1820/3900	SDCM<3/Ra80,90	IP20	P1160xL26xK24	14,93 kg	25 kpl
TU100-05N-AT1-30F10-01	14W/30W	Typ.130	1820/3900	SDCM<3/Ra80,90	IP20	P1460xL26xK24	17,4 kg	25 kpl

Magnetic Retrofit -1

Magnetic Retrofit -2

Magnetic Retrofit -3
